sq.3.up™

sizes

P6606.up 3.5" sq x 6" h
P6612.up 3.5" sq x 12" h
P6618.up 3.5" sq x 18" h
P6624.up 3.5" sq x 24" h

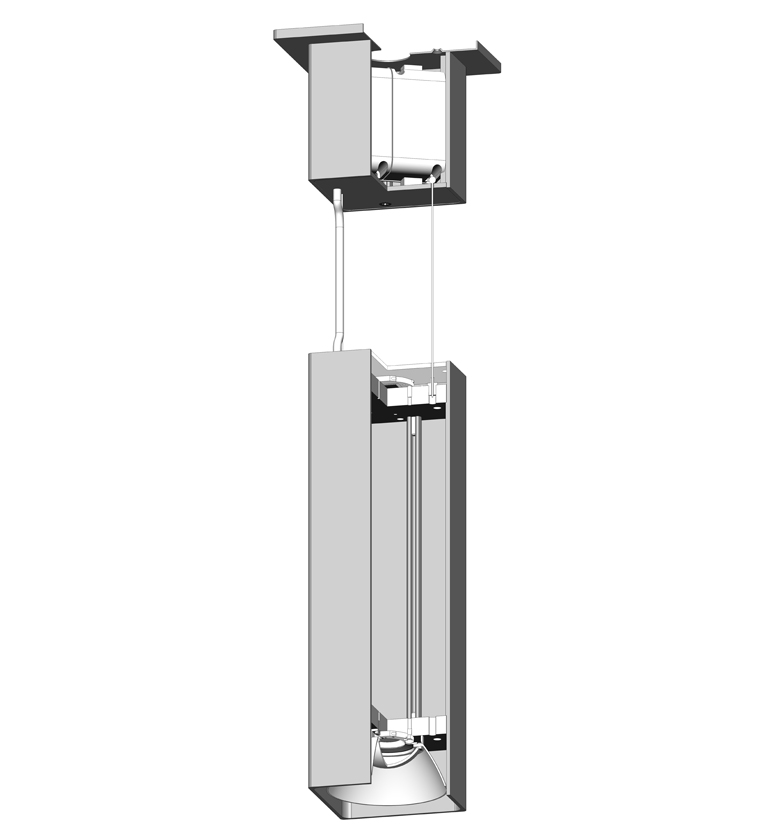

sq.3.up™ Dimensions Drawing

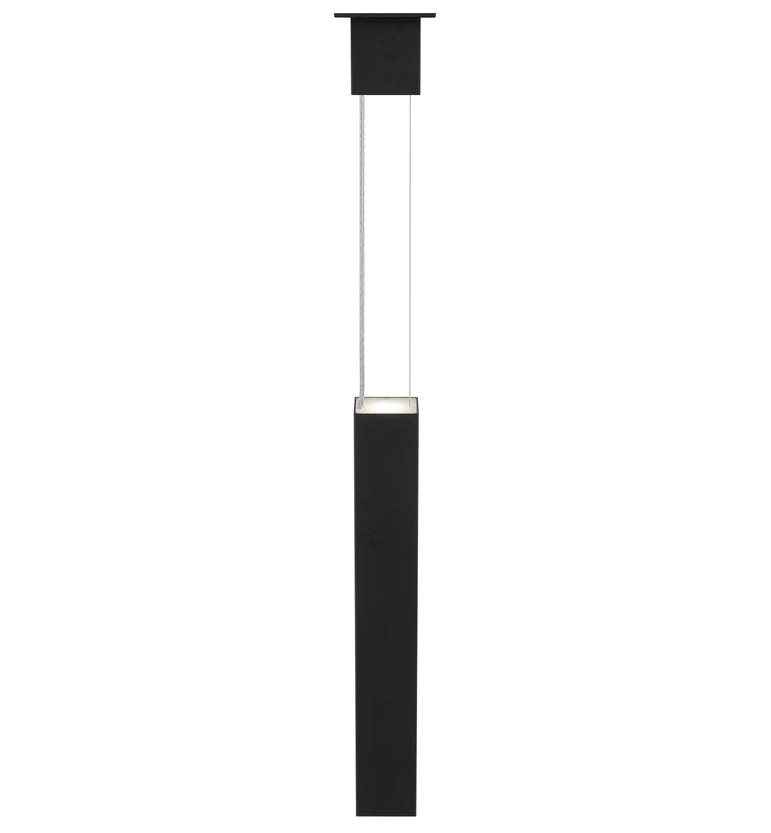

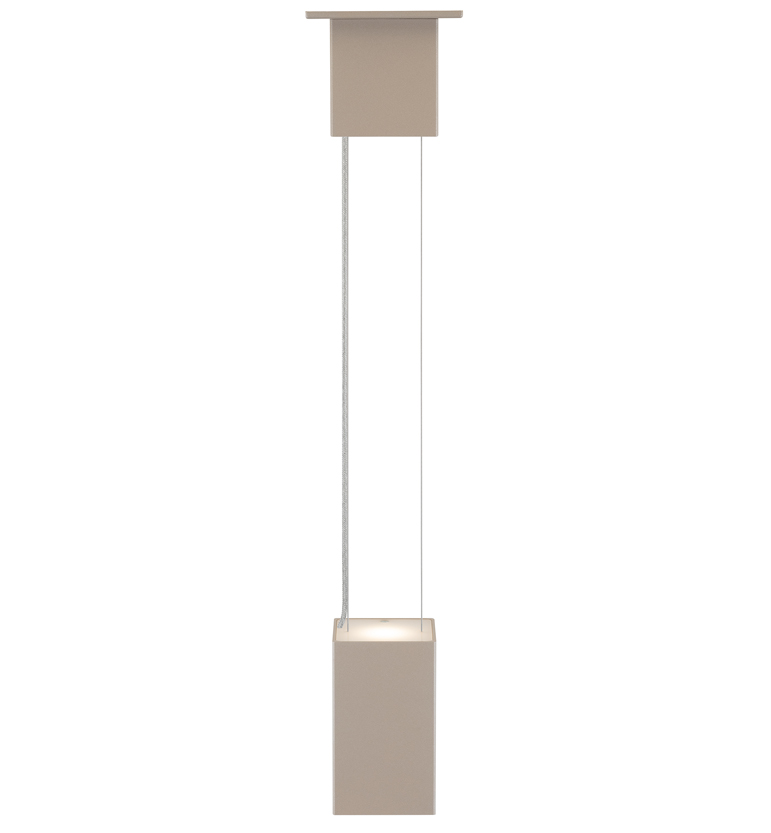

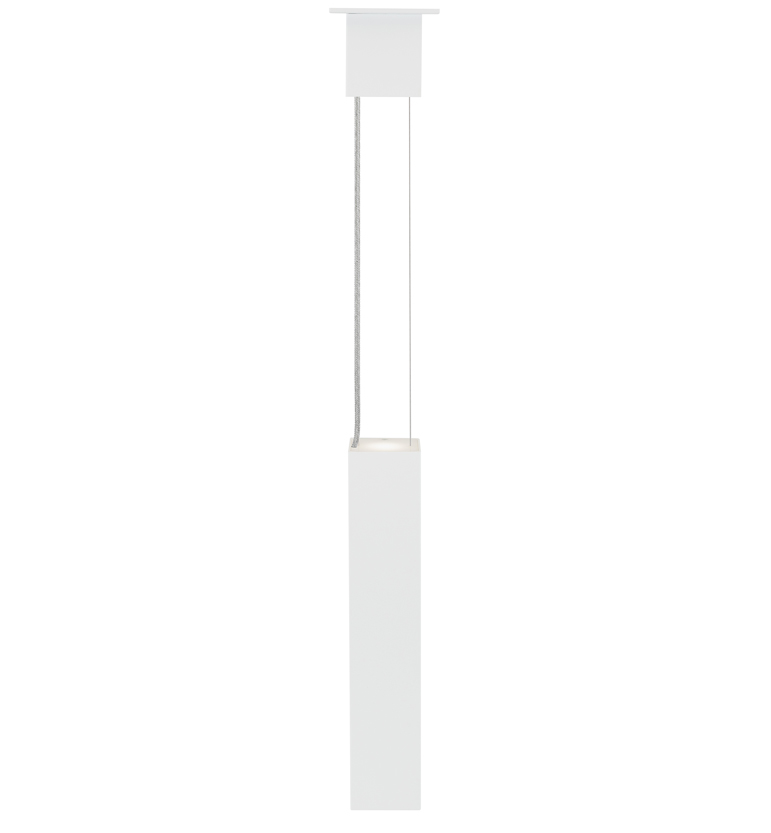

sleek square with uplight

3.5" square smooth extruded aluminum outer housing four lengths: 6", 12", 18" and 24" long. Six DIRECT lumen packages from 395 lm to 2780 lm four beam angles: 20, 30, 50 and 90 degrees. Four indirect lumen packages. Four CCT standard: 2700K, 3000K, 3500K, and 4000K. 90+ CRI standard.

Up light

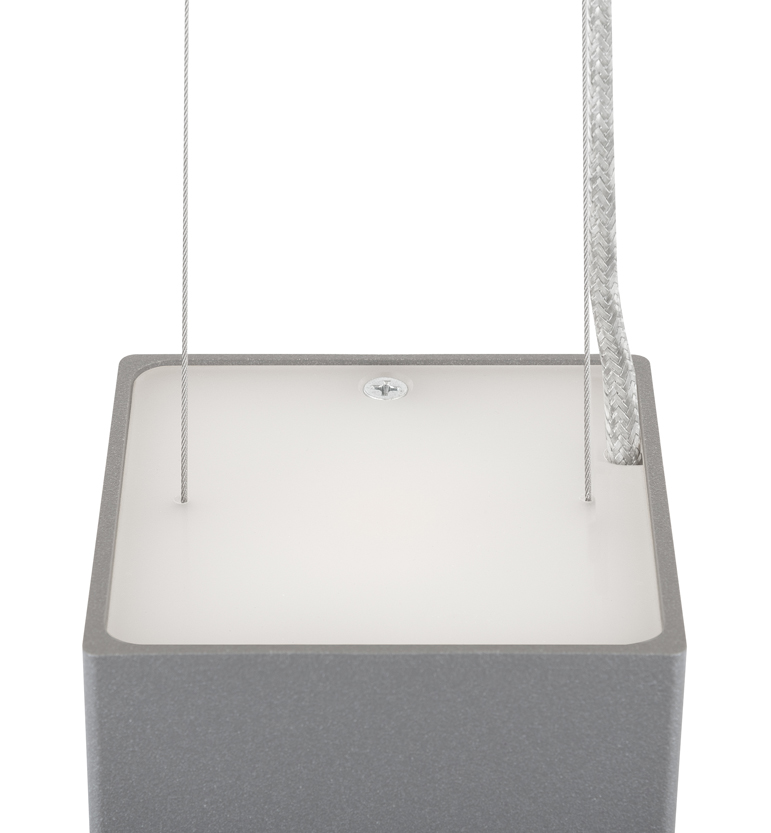

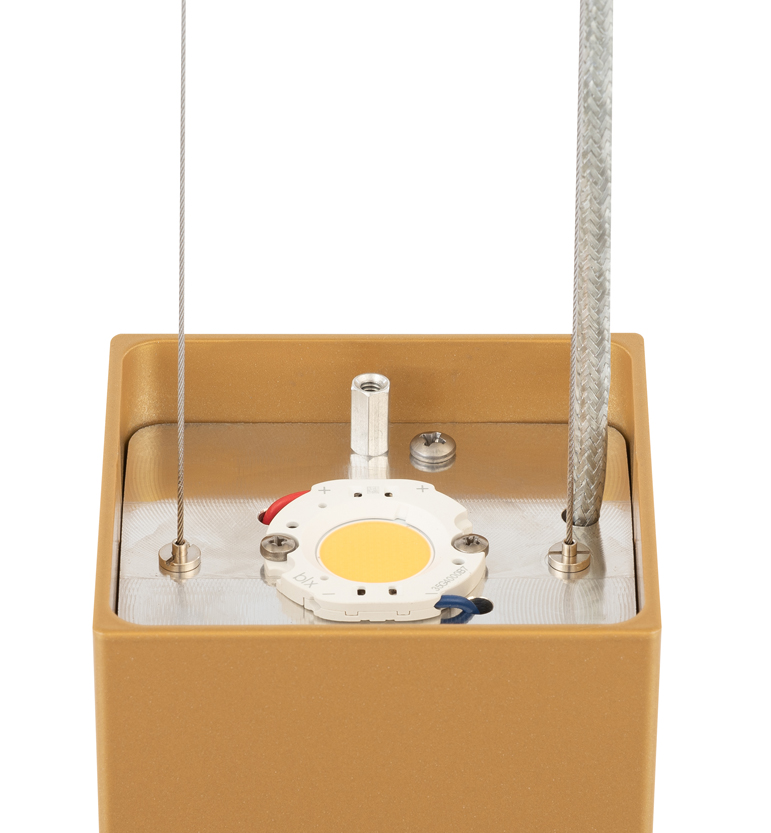

90+ CRI standard COB in 2700K, 3000K, 3500K and 4000K. up to four indirect lumen packages from 340 lm to 1185 lm diffuser is .118" thick laser cut optimum light diffusion acrylic. 72% light transmission with matte surface providing light scattering glare reduction. colorless diffusion significantly reducing color shift of the LEDs.
