P3508 8"dia. X 17.5"ht.
P3512 12"dia. X 21"ht.

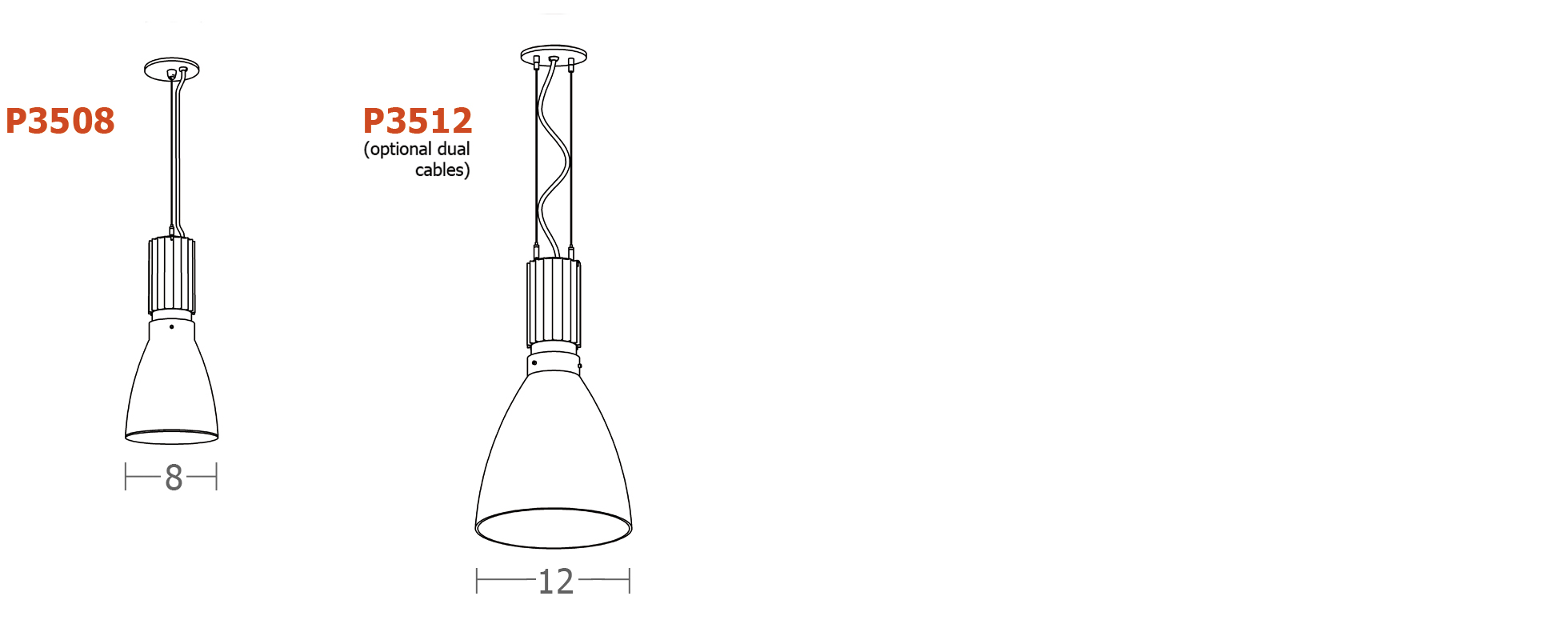

imago™ Dimensions Drawing

Modular Construction

Molex solder-less holder allows for LED module replacement in the field. Modular fixture design allows driver to be replaced in the field as well.

LED module

COB available in HI and LO lumen packages in 3000K, 3500K, or 4000K (80cri). Under normal operating conditions, the LEDs employed are rated for >36,000hrs L70 (6.8K) per IES TM-21 from LM-80 test data, and 71,000hrs L70 calculated life.
